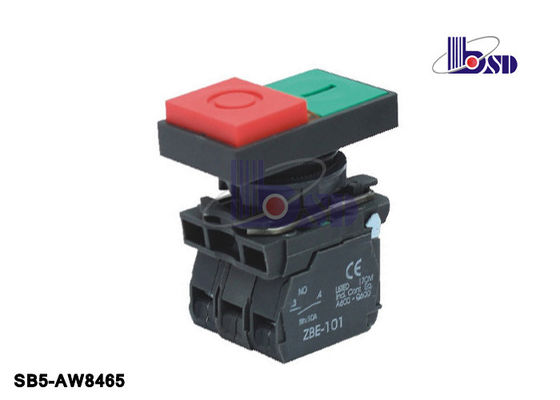

Two Head Push Button Switch SB5 Series Pilot Light With Led Lamp 220v

Two Head Push Button Switch SB5 Series Pilot Light With Led Lamp 220v
Two Head Push Button Switch SB5 Series Pilot Light With Led Lamp 220v Two Head Push Button Switch SB5 Series Pilot Light With Led Lamp 220v Two Head Push Button Switch SB5 Series Pilot Light With Led Lamp 220v Two Head Push Button Switch SB5 Series Pilot Light With Led Lamp 220v

Large Image :  Two Head Push Button Switch SB5 Series Pilot Light With Led Lamp 220v

Product Details:

Place of Origin: China
Brand Name: SIBRATEC
Certification: CCC, CE
Model Number: SB5-AW8465

Payment & Shipping Terms:

Minimum Order Quantity: 1000pcs
Price: usd1.15
Packaging Details: 20pcs in one box, 200 pcs in one carton
Delivery Time: within 15 days after receive payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000pcs/month
Detailed Product Description
Material: Plastic Color: AW8465--green And Red
Service: OEM Product Name: Push Button Switch
Max. Voltage:Max. Voltage:: 660V Lamp Beads Life:: 50hz
High Light:

press button switch

,

push button electrical switches

Products instruction



The push button series are used in controlling circuit of AC voltage up to 660V/AC 50Hz, and DC voltage below 400V.It is used for controlling signal and interlocking purposes. The main body of the push buttons adopts zinc alloy and high-grade anti-flam plastic.The contact adopts special silver alloy in order to enjoy the benefit of high anti-electrical erosion. The signal lamp series are suitable for electrical appliances circuit of Ac voltage up to 380V/50Hz, and DC voltage below 380v,It is ideal for using as indicating signals,warning signals, emergency signals, etc. Our products comply with GB/T14048 1 and lEC60947-5-1, all products are CE,ISO9001,ROHS and UL certified.



Work environment



1. Surrounding temperature:25℃~+55℃

2. Air relative humidity:≤85%

3. It can be normally work under following condition:Vibration frequency is 2-80HZ and acceleration speed is 0.7g/h.

4. Pollution grade III,installation sorts is III,protection grade is up to IP65;

5. Altitude:≤2000m.



Note



PG denotes pure green;PW denotes pure white.100*104( pushbutton )m2



Main technical parameter



Basic technical of button

Rated insulation voltage

AC 600V(50/60HZ)

Convertional current

10A

Insulation resistance

≥50M Ω

Contact resistance

≤25min Ω

Mechanical life

100*104( pushbutton )

50*104( Selector switch/Key switches )

Electrical life

500*104( pushbutton )

250*104( Selector switch/Key switches )



Basic technical of signal lamp

Insulation resistance

≥50M Ω

Contact resistance

≤25min Ω

Pf withstand voltage

AC 2.5KV/min

Voltage wave

±20%10A

Brightness

60cd/m2

Continuous working life

100*104h



Two Head Push Button Switch SB5 Series Pilot Light With Led Lamp 220v 0


LAY5(XB2)-BA42 Red color flat button in spring return for control panel

15 DAYS AFTER RECEIVED PAYMENT

20PCS IN ONE BOX , 200PCS IN ONE CARTON

LAY5(XB2)-BA42 Red color flat button in spring return for control panel









Two Head Push Button Switch SB5 Series Pilot Light With Led Lamp 220v 3

FAQ
1. Q: Are you trading company or manufacturer ?
A: We are factory and in this industry has 10 years.
2. Q: Do you have a catalogue? Can you send me the catalogue to have a check of all your products?
A: Yes , We have product catalogue.Please contact us on line or send an Email to sending the catalogue.
3. Q: I need your price list of all your products, do you have a price list ?
A: We don't have a price list of all of our products. And the price are always changing because of the producing cost.If you want to check any price of our products, please feel free to contact us.We will send offer to you soon!
4. Q: I can't find the product on your catalogue, can you make this product for me?
A: Our catalogue shows most of our products,but not all.So just let us know what product do you need,
and how many do you want.If we do not have it,we can also design and make a new mould to produce it.For your reference,making a ordinary mould will take about 25-35days.
5. Q : Can you make customized products and customized packing?
A: Yes. we made many moulds for our customers alread.About customized packing,we can put your Logo or other info on the packing.There is no problem.Just have to point out that ,it will cause some additional cost.
6. Q: What kind of payment do you accept ? Can I pay RMB ?
A: We accept T/T(Wire transfer),Western Union. And you can pay money In RMB. No problem.
Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance ,balance before shippment.
7. Q : What about your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 20-30 days if the goods are not in stock, it is according to quantity.
8. Q : How to ship my order ? Is it safe?
A: For small package, we will send it by Express, such as DHL,FedEx,,UPS,TNT,EMS.
For big packages, we will send them by Air or By sea.
9. Q: Do you have a guarantee of your product quality?
A: We have a guarantee of one year.
