Protected Control Panel Indicator Lamps Good Reliability Beautiful Shape

China HUANGSHAN SAFETY ELECTRIC TECHNOLOGY CO., LTD. certification
China HUANGSHAN SAFETY ELECTRIC TECHNOLOGY CO., LTD. certification
I'm Online Chat Now

Protected Control Panel Indicator Lamps Good Reliability Beautiful Shape

Protected Control Panel Indicator Lamps Good Reliability Beautiful Shape
Protected Control Panel Indicator Lamps Good Reliability Beautiful Shape Protected Control Panel Indicator Lamps Good Reliability Beautiful Shape Protected Control Panel Indicator Lamps Good Reliability Beautiful Shape Protected Control Panel Indicator Lamps Good Reliability Beautiful Shape

Large Image :  Protected Control Panel Indicator Lamps Good Reliability Beautiful Shape

Product Details:

Place of Origin: China
Brand Name: SIBRATEC
Certification: CCC, CE

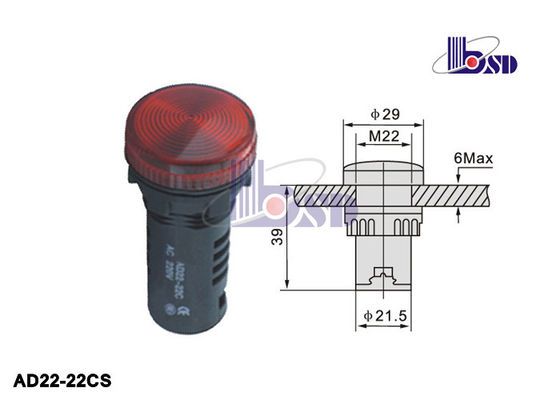

Model Number: AD22-22CS

Payment & Shipping Terms:

Minimum Order Quantity: 1000pcs
Price: usd1.15
Packaging Details: 20pcs in one box, 200 pcs in one carton
Delivery Time: within 15 days after receive payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000pcs/month
Detailed Product Description
Material: Plastic Color: AD22-22CS Red
Service: OEM Product Name: Push Button Switch
Max. Voltage:Max. Voltage:: 660V Lamp Beads Life:: 50hz
High Light:

led panel indicator lights

,

indicator warning light

AD22-22BS yellow colour protected LED indicator push button switch series indicator lamp



Products instruction .
AD22(LED)series of indicator is equally used LED shining chip as light source. Because of long life,low consumption, small volume and light weight,it is a Product replaced the older kind of incandescent lamp and indicator of neon lamp by new ones. AD22 indicators are produced by our factory enjoying following characters: high brightness good reliability beautiful shape and careful manufactu red.Products are well praised by lots of clients,it is possible to meet all kinds of intemationl standard lamp shade.which are made of polycarbonate with high intension and enjoying better antisurge performance. and bolt-type connector designed will make it safer and more convenient.All improvement will be provided to make your choice more convenient and your design perfect.

Use
AD22(LED)series of indicator ere used a9 indicating foretelling accident and other signals in the lines of equipment (such as.electrical power,telecommunicatlon ,machiine tool, watercraft,textile,printing and mine machinery,etc.)

Applicable environment
(1) Surrounding temperature: -25℃-+55℃.
(2) RelatiMe humidty: ≤98%
(3) It can normally work under the conditions of 2-80Hz.
vibration frequency and 0.7g/h accelerated speed.
(4) Pollution grade:III:Installed sort: III.
(5) It is possible to work under the moist tropical
environment if there is a"TH"sign.

Main technical parameter
(1) Voltage of working frequency: 2.5kV(AC valid value),1 min.
(2) Insulate d resistance≥2MΩ
(3) Voltage wave allowed by AC indicator±20%
(4) Continual working life≥30000h
(5) Briqhtness ≥ 60cd/m2
(6) 1ndex of leakaqe CT1≥100
(7) Protection grade is lP40,and it is possible to be made to up to IP67
(8) Using frequency:AC60~60Hz

Circuit introduction
(1)AC and DC indicator(AC/DC6V-220V)
Protected Control Panel Indicator Lamps Good Reliability Beautiful Shape 0

Note:It should be considered radiating condition when DC is up to 110V,220V and 380V,for there is a great of heart.
(2)AC indicator (AC220V,AC380V)
Protected Control Panel Indicator Lamps Good Reliability Beautiful Shape 1
(3) Return of double-color indicator(DC,AC110-220V)
Protected Control Panel Indicator Lamps Good Reliability Beautiful Shape 2
Note:When put through X0 and X1,lamp is shining green,when done X0 and X2,lamp is shining red.


Contrast list of voltage,current


Supply voltage AC.DC DC FD AC
Voltage(V) 6 12 24 36 48 110 127 220 380 500 220 380
Current(A) 140 72 18-72 18 18 16 16 12 12 12 12 17



Note:”FD” in the list means a discharging lamp can be installed on the cuppbosrd of capacitor.PG denotes pure green,PB denotes pure blue,PW denotes pure white.

Protected Control Panel Indicator Lamps Good Reliability Beautiful Shape 3


LAY5(XB2)-BA42 Red color flat button in spring return for control panel

15 DAYS AFTER RECEIVED PAYMENT

20PCS IN ONE BOX , 200PCS IN ONE CARTON

LAY5(XB2)-BA42 Red color flat button in spring return for control panel










Protected Control Panel Indicator Lamps Good Reliability Beautiful Shape 6Protected Control Panel Indicator Lamps Good Reliability Beautiful Shape 7Protected Control Panel Indicator Lamps Good Reliability Beautiful Shape 8
FAQ
1. Q: Are you trading company or manufacturer ?

A: We are factory and in this industry has 10 years.
2. Q: Do you have a catalogue? Can you send me the catalogue to have a check of all your products?
A: Yes , We have product catalogue.Please contact us on line or send an Email to sending the catalogue.

3. Q: I need your price list of all your products, do you have a price list ?
A: We don't have a price list of all of our products. And the price are always changing because of the producing cost.If you want to check any price of our products, please feel free to contact us.We will send offer to you soon!

4. Q: I can't find the product on your catalogue, can you make this product for me?
A: Our catalogue shows most of our products,but not all.So just let us know what product do you need,
and how many do you want.If we do not have it,we can also design and make a new mould to produce it.For your reference,making a ordinary mould will take about 25-35days.

5. Q : Can you make customized products and customized packing?
A: Yes. we made many moulds for our customers alread.About customized packing,we can put your Logo or other info on the packing.There is no problem.Just have to point out that ,it will cause some additional cost.

6. Q: What kind of payment do you accept ? Can I pay RMB ?
A: We accept T/T(Wire transfer),Western Union. And you can pay money In RMB. No problem.
Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance ,balance before shippment.

7. Q : What about your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 20-30 days if the goods are not in stock, it is according to quantity.

8. Q : How to ship my order ? Is it safe?
A: For small package, we will send it by Express, such as DHL,FedEx,,UPS,TNT,EMS.
For big packages, we will send them by Air or By sea.

9. Q: Do you have a guarantee of your product quality?
A: We have a guarantee of one year.
