LAY5(XB2)-BP3351 black color spring return flat button push button swithes

LAY5(XB2)-BP3351 black color spring return flat button push button swithes
LAY5(XB2)-BP3351 black color spring return flat button push button swithes LAY5(XB2)-BP3351 black color spring return flat button push button swithes LAY5(XB2)-BP3351 black color spring return flat button push button swithes LAY5(XB2)-BP3351 black color spring return flat button push button swithes

Large Image :  LAY5(XB2)-BP3351 black color spring return flat button push button swithes

Product Details:

Place of Origin: China
Brand Name: SIBRATEC
Certification: CCC, CE
Model Number: LAY5-BP3351

Payment & Shipping Terms:

Minimum Order Quantity: 1000pcs
Price: usd0.45
Packaging Details: 20pcs in one box, 200 pcs in one carton
Delivery Time: within 15 days after receive payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000pcs/month
Detailed Product Description
Material: Metal Color: Black-BP3351
Service: OEM
High Light:

illuminated push switch

,

push button on off switch

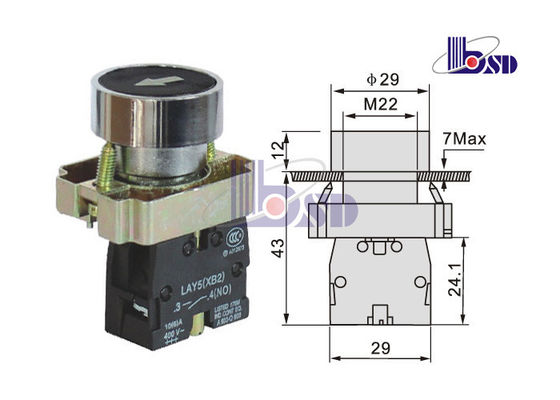

LAY5(XB2)-BP3351 black color spring return flat button push button swithes 0
PRODUCT SHOW :

LAY5(XB2)-BP3351 black color spring return flat button push button swithes 1

Products instruction

The push button series are used in controlling circuit of AC voltage up to 660V/AC 50Hz, and DC voltage below 400V.It is used for controlling signal and interlocking purposes. The main body of the push buttons adopts zinc alloy and high-grade anti-flam plastic.The contact adopts special silver alloy in order to enjoy the benefit of high anti-electrical erosion. The signal lamp series are suitable for electrical appliances circuit of Ac voltage up to 380V/50Hz, and DC voltage below 380v,It is ideal for using as indicating signals,warning signals, emergency signals, etc. Our products comply with GB/T14048 1 and lEC60947-5-1, all products are CE,ISO9001,ROHS and UL certified.



Work environment

1. Surrounding temperature:25℃~+55℃

2. Air relative humidity:≤85%

3. It can be normally work under following condition:Vibration frequency is 2-80HZ and acceleration speed is 0.7g/h.

4. Pollution grade III,installation sorts is III,protection grade is up to IP65;

5. Altitude:≤2000m.



Note

PG denotes pure green;PW denotes pure white.100*104( pushbutton )m2



Main technical parameter



Basic technical of button

Rated insulation voltage AC 600V(50/60HZ)
Convertional current 10A
Insulation resistance ≥50M Ω
Contact resistance ≤25min Ω
Mechanical life 100*104( pushbutton ) 50*104( Selector switch/Key switches )
Electrical life 500*104( pushbutton ) 250*104( Selector switch/Key switches )



Basic technical of signal lamp

Insulation resistance ≥50M Ω
Contact resistance ≤25min Ω
Pf withstand voltage AC 2.5KV/min
Voltage wave ±20%10A
Brightness 60cd/m2
Continuous working life 100*104h



LAY5(XB2)-BP3351 black color spring return flat button push button swithes 2LAY5(XB2)-BP3351 black color spring return flat button push button swithes 3LAY5(XB2)-BP3351 black color spring return flat button push button swithes 4


LAY5(XB2)-BA42 Red color flat button in spring return for control panel

15 DAYS AFTER RECEIVED PAYMENT

20PCS IN ONE BOX , 200PCS IN ONE CARTON

LAY5(XB2)-BA42 Red color flat button in spring return for control panel












FAQ
1. Q: Are you trading company or manufacturer ?
A: We are factory and in this industry has 10 years.
2. Q: Do you have a catalogue? Can you send me the catalogue to have a check of all your products?
A: Yes , We have product catalogue.Please contact us on line or send an Email to sending the catalogue.
3. Q: I need your price list of all your products, do you have a price list ?
A: We don't have a price list of all of our products. And the price are always changing because of the producing cost.If you want to check any price of our products, please feel free to contact us.We will send offer to you soon!
4. Q: I can't find the product on your catalogue, can you make this product for me?
A: Our catalogue shows most of our products,but not all.So just let us know what product do you need,
and how many do you want.If we do not have it,we can also design and make a new mould to produce it.For your reference,making a ordinary mould will take about 25-35days.
5. Q : Can you make customized products and customized packing?
A: Yes. we made many moulds for our customers alread.About customized packing,we can put your Logo or other info on the packing.There is no problem.Just have to point out that ,it will cause some additional cost.
6. Q: What kind of payment do you accept ? Can I pay RMB ?
A: We accept T/T(Wire transfer),Western Union. And you can pay money In RMB. No problem.
Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance ,balance before shippment.
7. Q : What about your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 20-30 days if the goods are not in stock, it is according to quantity.
8. Q : How to ship my order ? Is it safe?
A: For small package, we will send it by Express, such as DHL,FedEx,,UPS,TNT,EMS.
For big packages, we will send them by Air or By sea.
9. Q: Do you have a guarantee of your product quality?
A: We have a guarantee of one year.
