CD60A STARTING CAPACITOR
Introduction:
CD60A-1 Type aluminum electrolytic capacitor is made according to American ANSI/EIA -463-A standard ,
A new device developed, bakelite case ,high class insulating , high strength , uneasy broken , and good sealed .
This device is of the good performance , easily for use , reliable and long in service life as well as the high and stable quality.
CD60A-1 type aluminum electrolytic capacitor is suitable for use in single phase ac motors with frequency of 50Hz~60Hz,
voltage 110VAC~330VAC to get high rotary torque at low starting current and also be widely for use in the high tech territory.
Main Technical Data:
| Environment Temperature | -40~+65℃ |
| Rated Voltage | 110~330VAC |
| Capacitance Range | 21~1536uf |
| Capacitance Tolerance | 0~+20% |
| Dissipation Factor | tg＜0.1＜0.15 (20℃,100Hz) |
| Load Life | According to the difference working voltage and capacitance , alternation 0.5-4 minute turn on 1 time for second , 12500~50000times . According to the ANSI/EIA-463-A standard. |
| Surge Voltage between lugs | Applying 1.25 times rated voltage for 2 seconds |
| Surge Voltage between lugs and case | 2000VAC 10 seconds non-broken down |

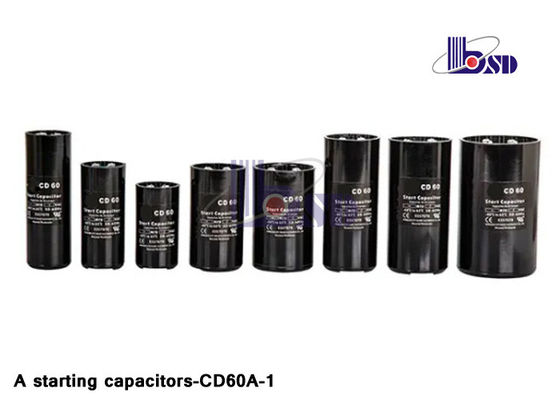

Product show:
