| Usage: | Low Frequency Bypass | Capacitance: | 1-50UF |
|---|---|---|---|
| Voltage: | 250VAC To 630VAC | Service: | OEM And ODM |
| High Light: | lamp capacitor,ballast capacitor |
||

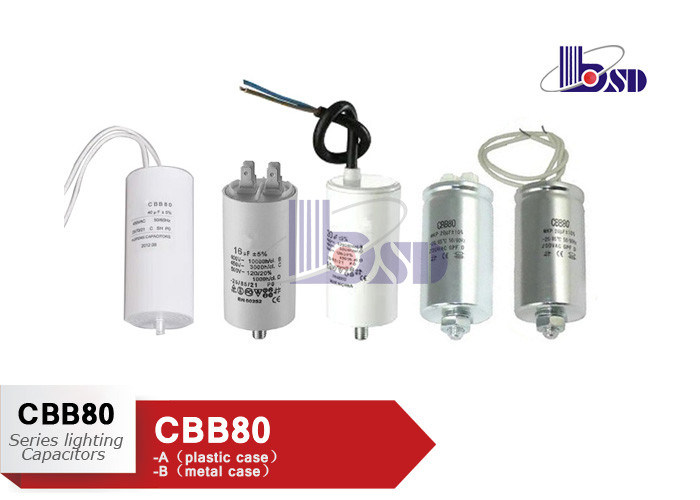

CBB80 250VAC 25UF Lighting Capacitor for Lamp Capacitor
CBB80 series Lighting capacitor ,SH ,for power factor
Capacitance: 2 to 50uF
Capacitance tolerance: +/-5% +/-10%
Working voltage: 250 to 630VAC
Temperature range: -40 to +105 degrees Celsius
Lead material: quick fitting with bolt or AMP 250 tin-plated brass QCs
Outer shape: UL 94 V-O fire-retardant round plastic case or aluminum can and epoxy-resin sealed.
Small size, small loss and excellent self-healing property.
Very small dissipation factor, small inherent temperature rise.
High insulation resistance.
Good capacitance stability.
Available for fluorescent lamps,daylight lamps,halogen lamps, high pressure sodium lamps,etc.
| Products feather | ITEM NO. |
Rated Voltage (VAC) |
Temperature (°C) |
Rated capacitance (uf) |
Diameter (D)mm |
Length (L1)mm |
PCS/CTN |
G.W / N.W (KG) |
MEASUREMENT (CM) |
CBB80 |
250 |
85 |
18 |
40 |
72 |
100 |
8.3/7.7 |
45.5x24.5x21 |
|
250 |
105 |
3.4 |
30 |
67 |
|||||
250 |
105 |
6 |
35 |
67 |
|||||
250 |
105 |
6.3 |
35 |
67 |
|||||
250 |
105 |
8 |
35 |
67 |
|||||
250 |
105 |
9 |
35 |
72 |
|||||
250 |
105 |
12 |
35 |
72 |
100 |
6.5/5.9 |
40x21x23 |
||
250 |
105 |
14 |
35 |
72 |
100 |
6.4/6 |
40x21x23 |
||
250 |
105 |
18 |
40 |
85 |
|||||
250 |
105 |
20 |
40 |
85 |
100 |
7.4/7 |
40x21x23 |
||
250 |
105 |
25 |
40 |
85 |
|||||
250 |
105 |
32 |
40 |
85 |
100 |
9.5/9.1 |
45.5x24.5x25 |
||
250 |
105 |
42 |
50 |
105 |
|||||
250 |
105 |
45 |
50 |
105 |
|||||
250 |
105 |
50 |
50 |
105 |
|||||
Products name |
CBB80-3 compensation capacitor for lighting fixtures |
||||||||
Products type |
Aluminium case cable type with stud |
||||||||
Technical parameter |
1. Rated frequency: 50/60HZ |
||||||||
2. Capacitance range: 1-50uf |
|||||||||
3. Capacitance deviation: +/-5% |
|||||||||
Certificate |
UL, CE ,ISO9001-2008,ROHS |
||||||||
